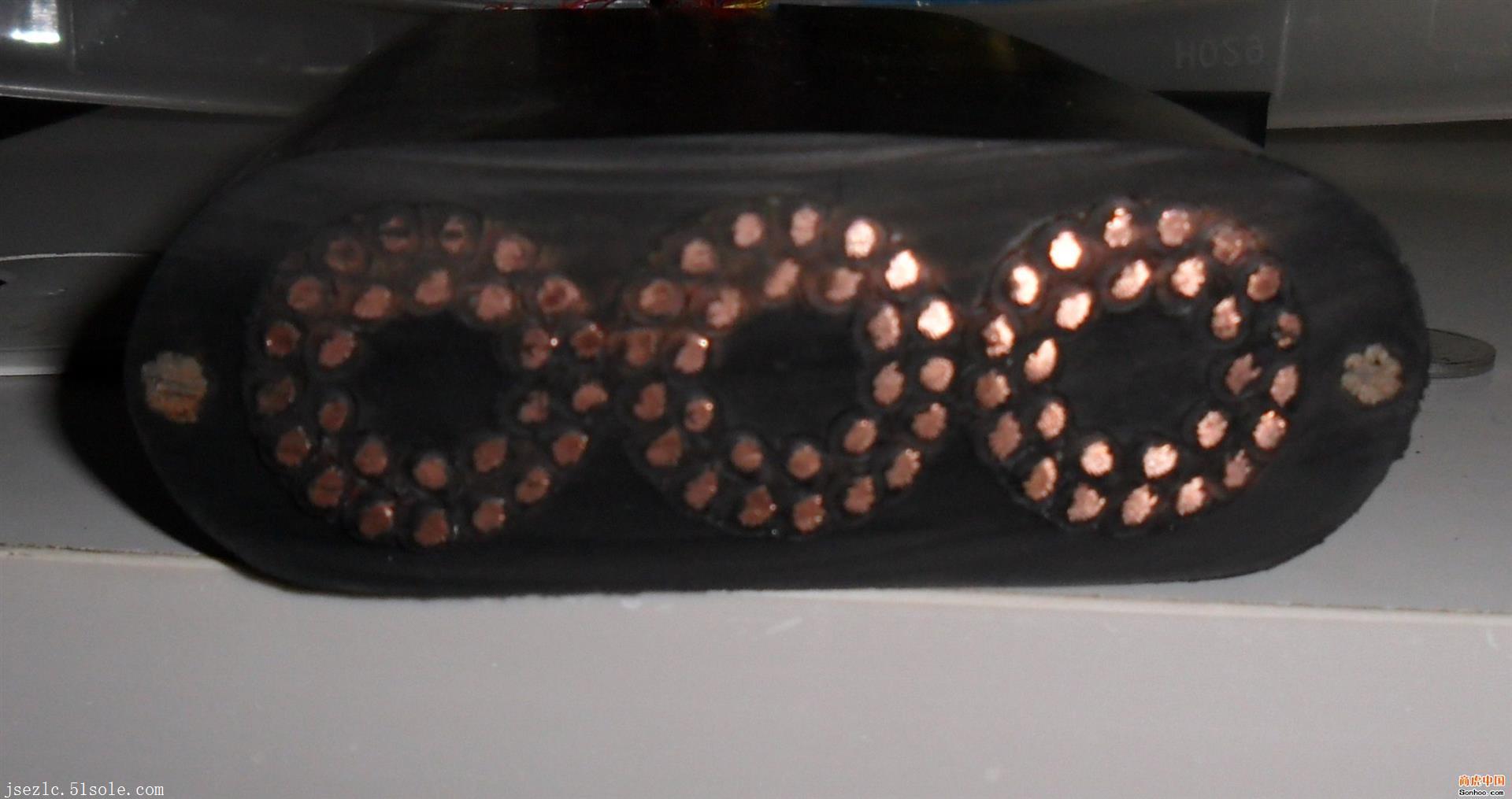

露天高压扁电缆
Open-air high-voltage flat cable flat open-air high-voltage electric Lolo open-air high-voltage flat cable flat cable flat day day high pressure cable open-air high-voltage flat cable, this product is suitable for rated voltage 8.7/10kV and below the open excavation of heavy equipment with ethylene propylene rubber insulated chloroprene rubber sheath high-pressure rubber sheathed flat cable. 露天高压扁电缆
使用特性 Using features3.1电缆导体较高额定温度为90℃。3.2短路时（最长持续时间不超过5秒）电缆导体的较高温度不超过250℃。3.3电缆允许较低环境温度:UGEFP型：—15℃；UGEFHP型：—33℃。3.4电缆允许最小弯曲半径:用于固定设备时为6D；以自由活动方式连接时为10D；用电缆盘收放时为12D；用转向导轮时为15D（其中D为电缆直径）。
The use of the characteristics of features3.1 Using cable conductor at a higher temperature of 90. 3.2 short circuit (the longest duration of not more than 5 seconds) the higher temperature of the cable conductor is not more than 250. 3.3 cable allows lower ambient temperature: UGEFP type: - 15 C; UGEFHP type: - 33. 3.4 bending radius of cable for fixed equipment for 6D; to free way to connect to 10D; cable tray in use for steering wheel for 12D; 15D (D is the diameter of the cable). 露天高压扁电缆
